원래 장소:
헹수이 시, 헤베 프로바인스이, 중국
브랜드 이름:
HengYuan
인증:
ISO,CO,FORM E,CIQ, etc
모델 번호:
Hy070703
연락주세요

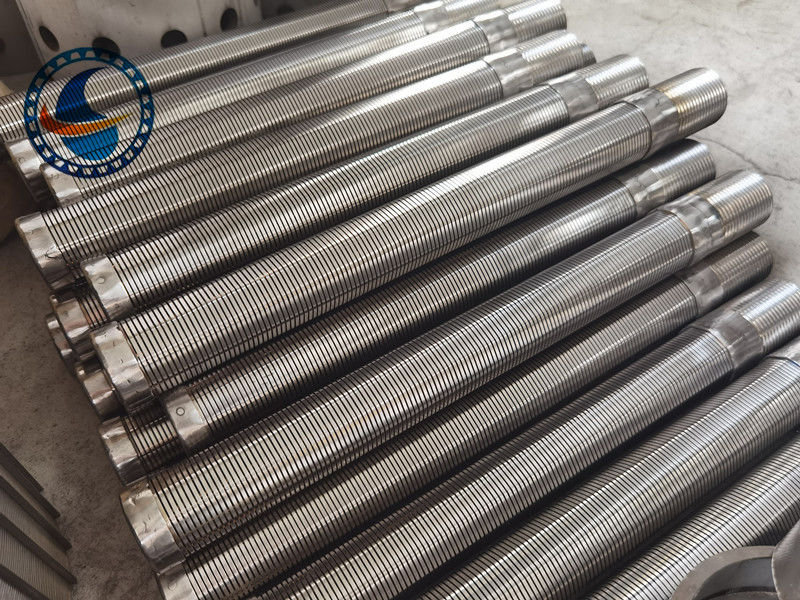

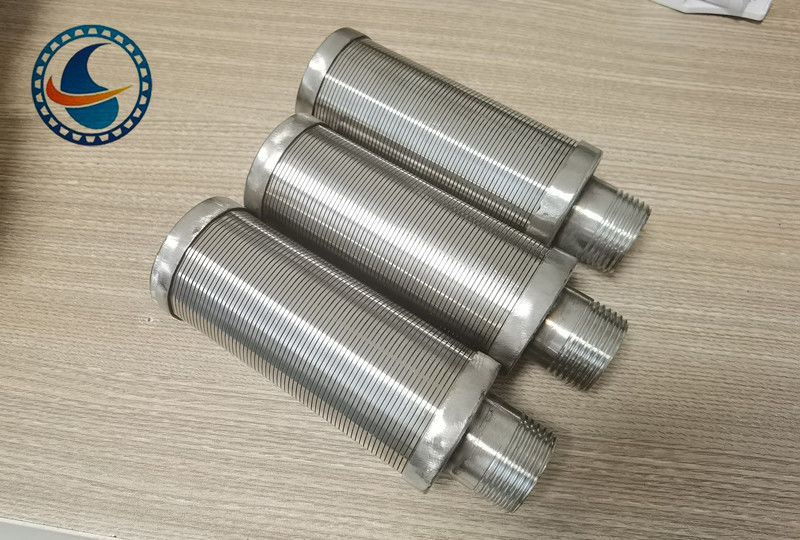

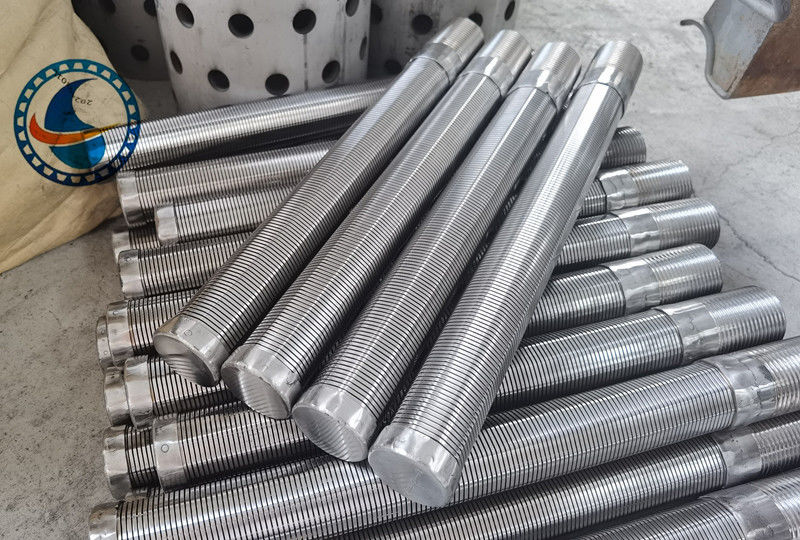

The SS rod based continuous slot wedge wire screen pipe liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers.
These rod based continuous slot wedge wire screen pipes are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers.
These rod based continuous slot wedge wire screen pipes are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.
High shive and stickies removal efficiency.
Maximized flow capacity.
Durable,extended operating life.
Application flexibility.
Dimensional accuracy.
|
Material |
Stainless steel 304, 316, 316L |
|
Diameter |
26mm-1300mm |
|
Shape |
Cylindrical |
|
Slot |
0.02-100mm |
|
Thickness |
4mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
1. Wedge Wire Screen Pipe has high mechanical strength, can bear large pressure drop.
2. Wedge Wire Screen Pipe has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
