원래 장소:
헹수이 시, 헤베 프로바인스이, 중국
브랜드 이름:
HengYuan
인증:
ISO,CO,FORM E,CIQ, etc
모델 번호:
Hy070702
연락주세요

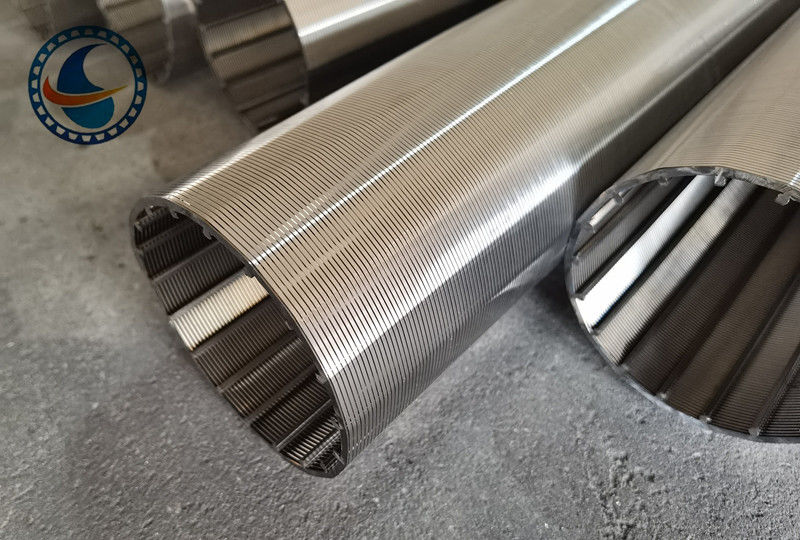

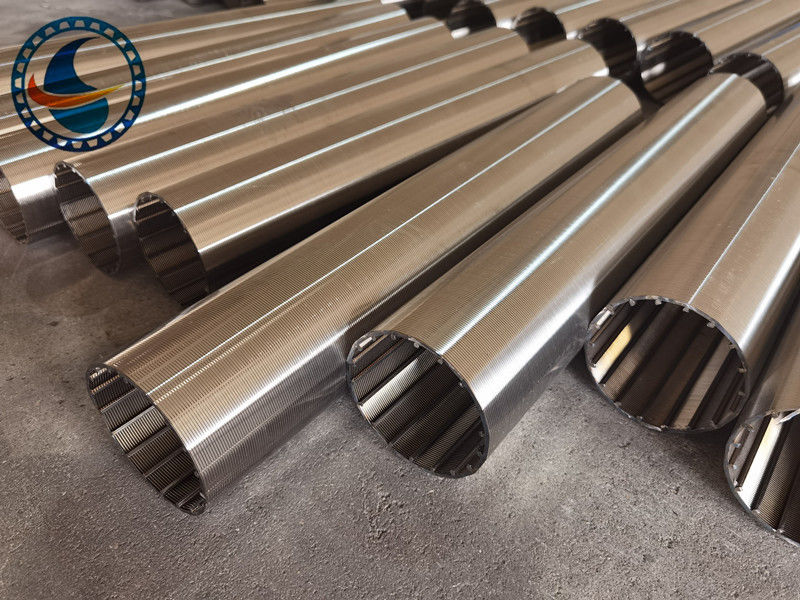

Wedge wire screen mesh also be named Vee-Wire screen pipe.Continuous slot Vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .Accurate slot and high filtration precision.
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc.
Diameter : 25-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
|
Material |
Stainless steel 304, 316, 316L |
|
Diameter |
50mm-6000mm |
|
Shape |
Cylindrical |
|
Slot |
0.02-100mm |
|
Thickness |
4-10mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
1. Wedge Wire Screen mesh has high mechanical strength, can bear large pressure drop.
2. Wedge Wire Screen Mesh has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
This wedge wire screen mesh is especially applicable for wax oil, asphalt and other high viscosity oil liquid.
