원래 장소:
헹수이 시, 헤베 프로바인스이, 중국
브랜드 이름:
HengYuan
인증:
ISO,CO,FORM E,CIQ, etc
모델 번호:
Hy070202
연락주세요

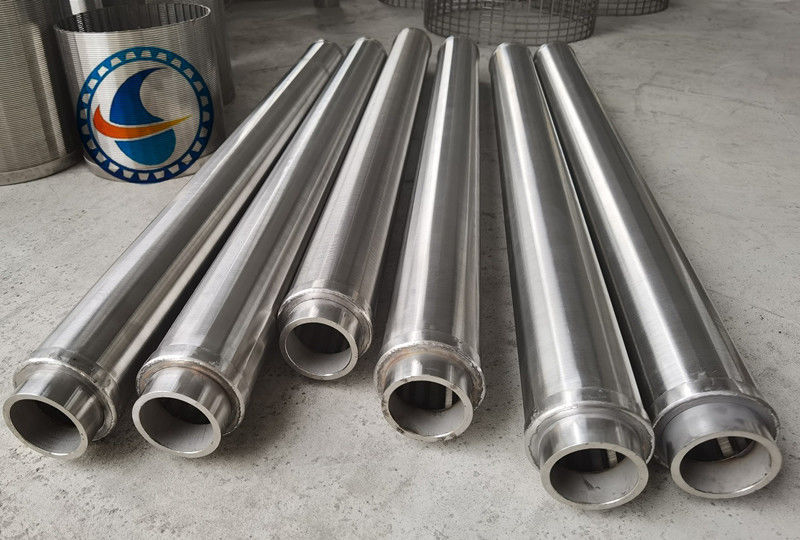

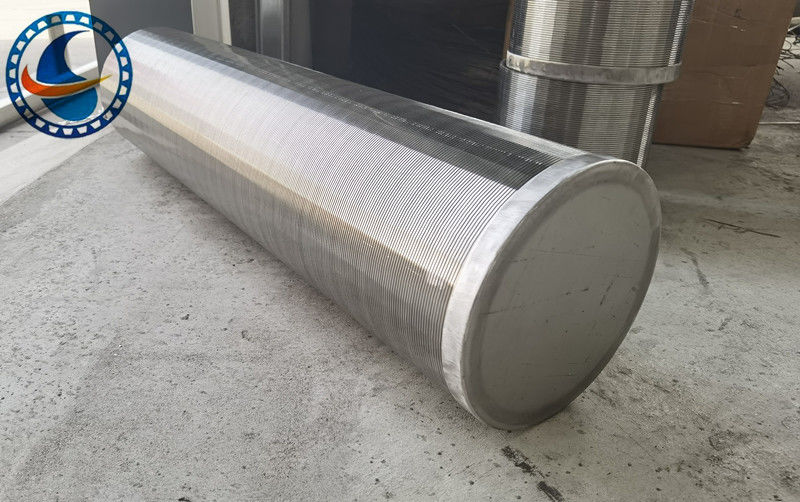

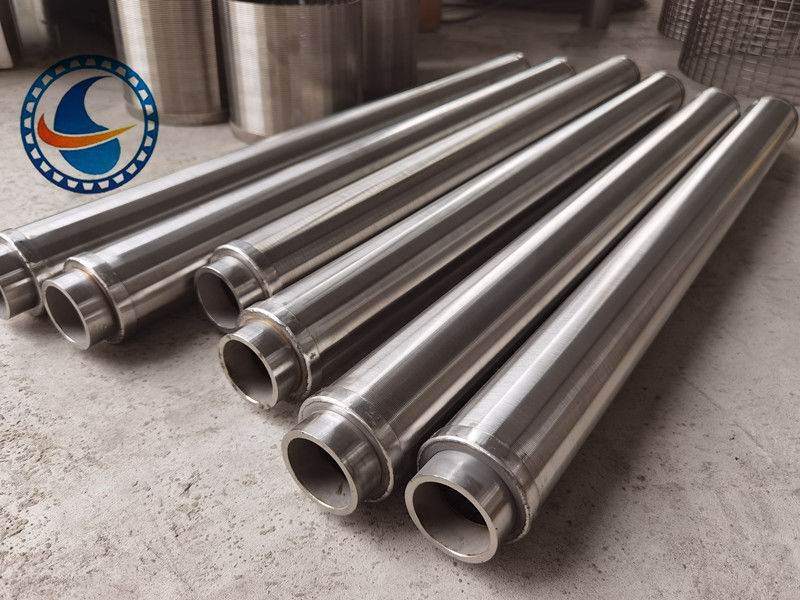

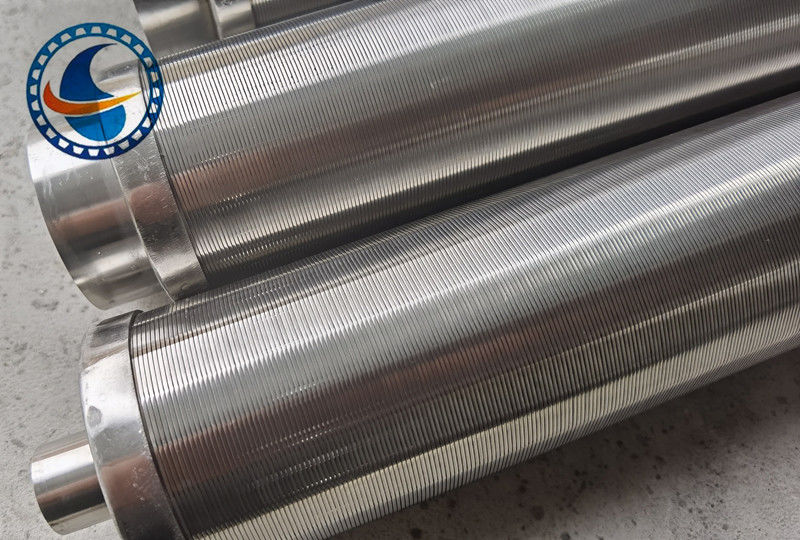

In the mineral processing industry, wedge wire screen filter need to withstand abrasive and corrosive applications. Both vibrating and static wedge wire screen filter can be used.
When selecting a wedge wire screen for your mineral processing applications, the following factors should be considered:
As renowned wedge wire screen filter suppliers, Hengyuan will ensure that the above criteria meet your specific screening requirements. As a mineral processing equipment manufacturer, we also offer a wide range of apertures and profiles with our wedge wire screening solutions.
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc.
Diameter : 25-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm
End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
Filter type:From outside to inside ; From inside to outside.
Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.
Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.
|
Material |
Stainless steel 304, 316L |
|
Diameter |
25mm-600mm |
|
Shape |
Cylindrical |
|
Slot |
0.02mm-10mm |
|
Thickness |
4mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
직접적으로 당신의 조사를 우리에게 보내세요
